SP Flash Tool is a reliable and popular utility used for flashing firmware, customizing ROMs, and recovering images on devices powered by MediaTek. This important tool is perfect for users who want to upgrade their devices, repair bricked smartphones, or delve into system-level customizations. With the latest version of the SP Flash Tool v6, you can enjoy enhanced features and better compatibility, which makes the flashing process easier and more efficient.
In this article we will explore the overview of this tool, its key features, how to use it with step-by-step guide and its best alternative with key features.
Struggling with FRP APK installations? Download PassFab Android Unlock for free to effortlessly bypass FRP on a wide range of Android devices, such as Samsung, Huawei, Xiaomi, OPPO, and more.
Part 1: SP Flash Tool Overview
The SP Flash Tool is a powerful software utility specifically designed for MediaTek-powered devices. It allows users to flash firmware, install custom ROMs, and recover bricked devices efficiently. Developed to meet the needs of both developers and end-users, this tool is a reliable solution for managing and customizing Android smartphones and tablets with MediaTek chipsets.
1.1 Key Features of SP Flash Tool
- Flash Firmware and ROMs: Install stock firmware or custom ROMs safely.
- Unbrick Devices: Restore devices that have become bricked due to software problems.
- Memory Testing: Check the RAM on MediaTek devices for any errors.
- Format and Reset: Perform factory resets and remove FRP locks with ease.
- Compatibility: Works on both Windows and Linux platforms.
1.2 SP Flash Tool Supported Devices
The SP Flash Tool primarily supports MediaTek-powered devices, including:
- Xiaomi (specific MediaTek variants)
- Realme (MediaTek models)
- Oppo (MediaTek models)
- Vivo (MediaTek models)
- Tecno
- Infinix
- Lenovo
- Micromax
- Gionee
- Lava
- Meizu
- Cubot
- Elephone and other budget or mid-range MediaTek-based devices
1.3 Is SP Flash Tool Free to Use?
Yes, the SP Flash Tool is entirely free to use. Whether you’re downloading SP Flash Tool v6 or an earlier version like SP Flash Tool v5, there are no hidden charges. You can access the tool and its updates without any subscription fees.
1.4 SP Flash Tool Download for Windows and Mac
The SP Flash Tool is available for both Windows and Linux operating systems, ensuring compatibility with a wide range of devices. It comes in different versions, including the latest SP Flash Tool v6 and the widely used SP Flash Tool v5. Below is a detailed table to guide you on downloading the appropriate version based on your needs:
| Version | Operating System | Key Features | File Size | Download LinkWindow |
|---|---|---|---|---|
| SP Flash Tool v6 | Windows, Linux | - Enhanced stability - Support for the latest MediaTek chipsets - Improved interface design | ~50 MB | Download SP Flash Tool v6.2404 |
| SP Flash Tool v5 | Windows, Linux | - Legacy version - Supports older MediaTek devices - Reliable for older firmware flashing | ~40 MB | Download SP Flash Tool v5.2404 |
Pros & Cons of SP Flash Tool
Pros:
- Free to use
- Supports a wide range of MediaTek devices
- User-friendly interface
- Reliable for unbricking and firmware flashing
Cons:
- Not compatible with non-MediaTek devices
- Requires technical knowledge for safe usage
- Risk of bricking if instructions are not followed correctly
Part 2: How to Use SP Flash Tool to Flash Firmware
Flashing firmware with the SP Flash Tool can revitalize your MediaTek-powered device, whether you're updating its operating system, resolving bugs, or unbricking a faulty phone. While the process might appear technical, the tool's user-friendly interface and simple steps make it easy for both novices and experienced users.
Requirements for SP Flash Tool
- Pc or Laptop.
- USB data cable for the device.
- Drivers (MediaTek USB-VCOM drivers). You can see tutorials and download links.
- Scatter file + files to be flashed.
- Backup the device.
- SP Flash Tool Download from above table links.
Steps to Use SP Flash Tool for Firmware Flashing on MTK Devices

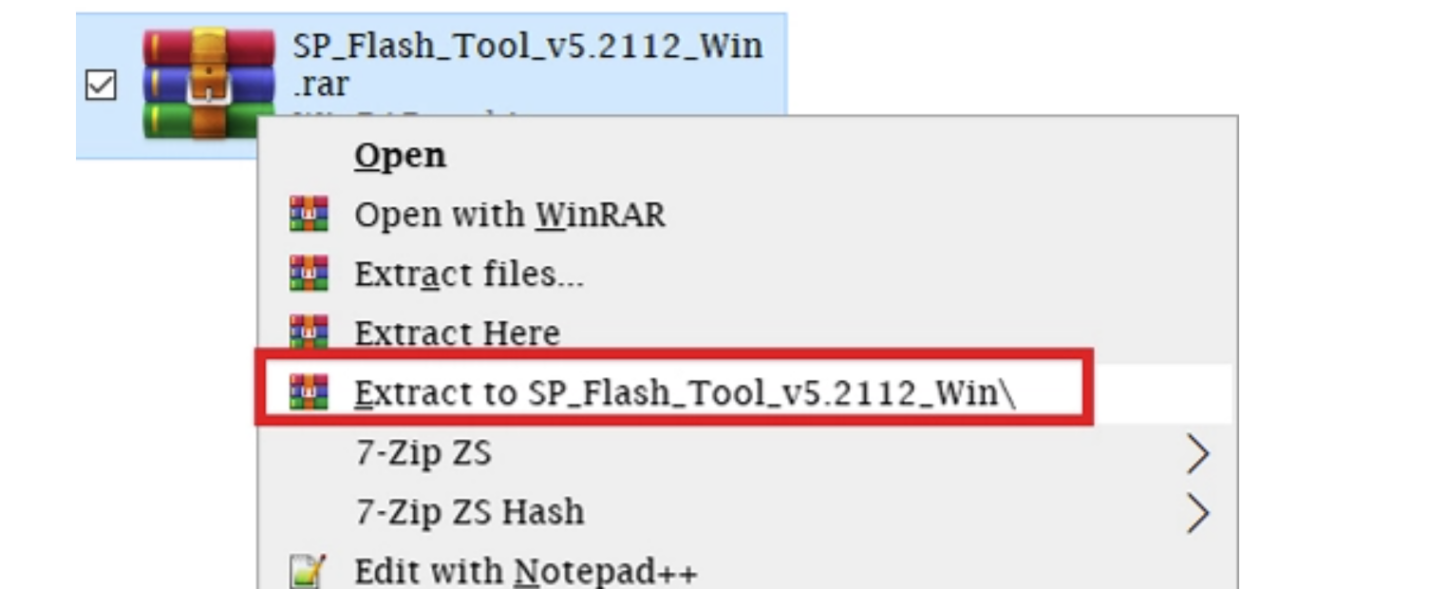

Download the SP Flash Tool and extract its contents. Also, ensure that you have the necessary drivers installed.
Turn on USB debugging on your phone.
Download the firmware you need to flash and extract it using WinRAR or WinZip.
Power off your phone. If the battery is removable, take it out.
Launch flash_tool.exe from the SP Flash Tool folder.

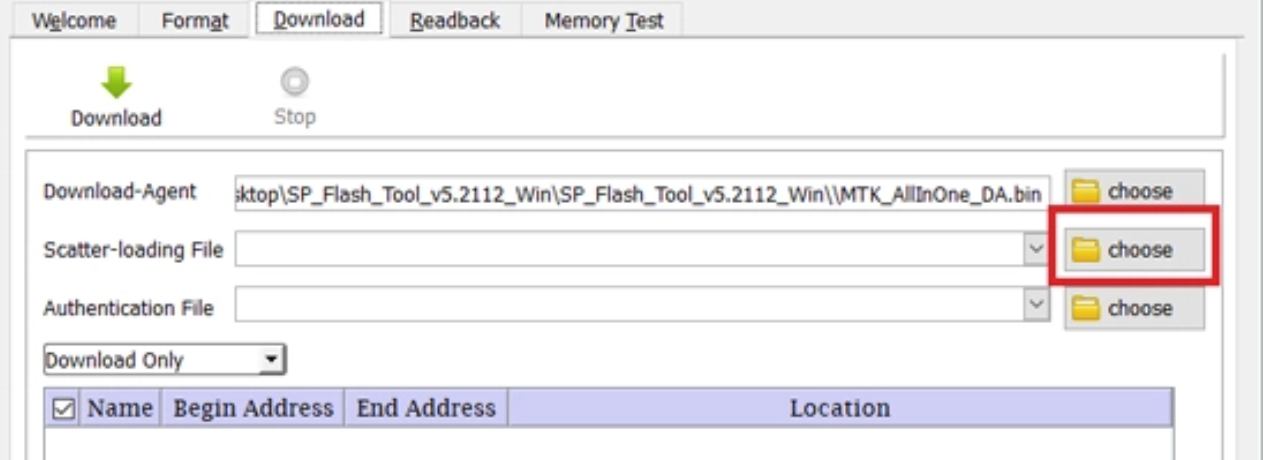

Click on Scatter-loading and find the scatter file (you can locate it in the extracted firmware folder > Firmware). The file name will typically be in the format MTXXXX_Android_scatter.txt.

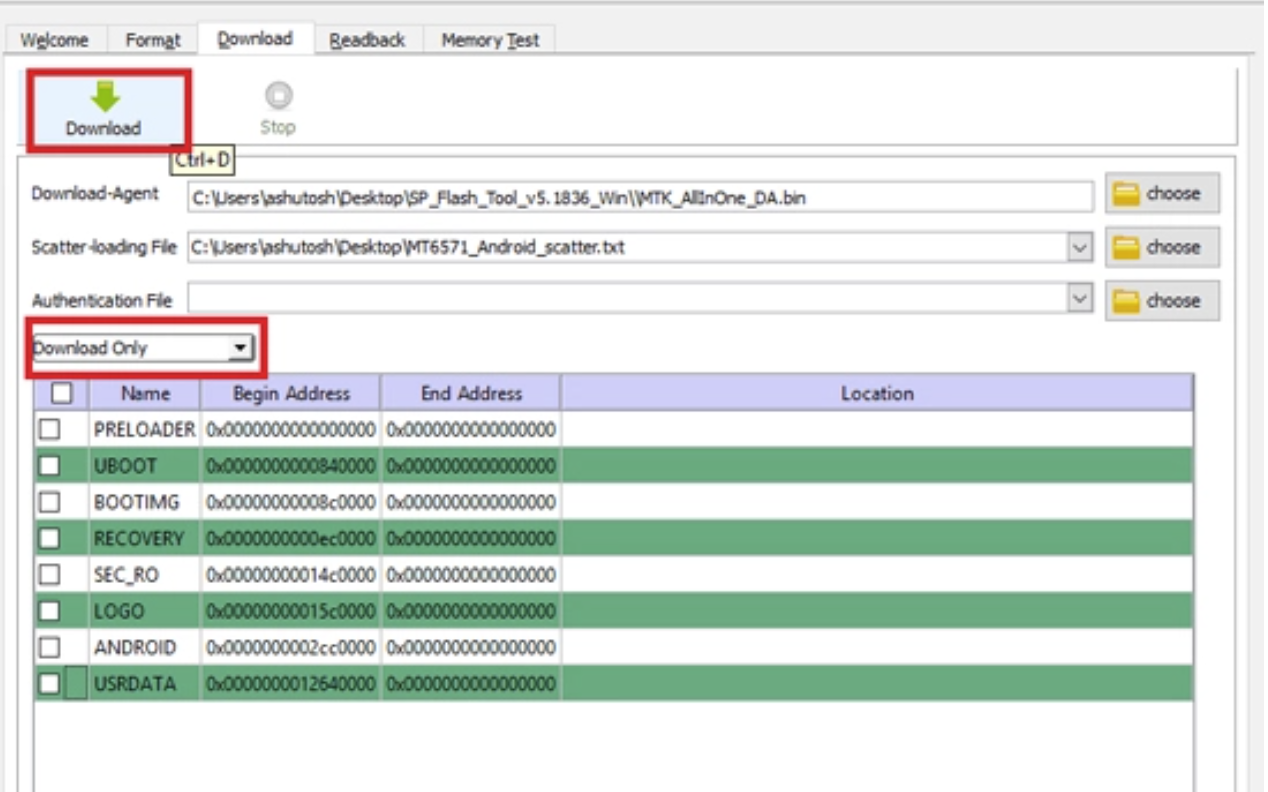

From the drop-down options, choose Download Only. If you're upgrading the firmware, select firmware upgrade. Then click on Download. Ensure that all files are checked.
Connect your phone to your PC using a USB cable. If your phone has a removable battery, keep it out for now.
The download progress will start, so just wait for the success message to appear.
-
Once you see the success message, disconnect the USB cable and power on your phone. Set up your phone, and that's it! You've successfully flashed the firmware on your device using the SP Flash tool.
Part 3: Best MTK FRP Bypass Tool You Shouldn't Miss
When dealing with MediaTek devices, bypassing the Factory Reset Protection (FRP) lock can be a challenging task, especially if you’ve forgotten your Google account credentials. Having a reliable and effective tool can make all the difference. One of the best solutions available is PassFab Android Unlock, a comprehensive tool designed to bypass FRP locks on Android devices, including those powered by MediaTek chipsets.
key Features of Passfab Android Unlock
- Effortless FRP Bypass Easily remove Google account verification from locked devices without needing any credentials.
- Wide Device Compatibility Compatible with a wide variety of Android devices, including those powered by MediaTek.
- User-Friendly Interface Simple steps make it accessible for both beginners and experienced users.
- Safe and Reliable Guarantees data safety throughout the unlocking process while maintaining device functionality.
- Multi-Functional Unlocking In addition to FRP bypass, it can also eliminate other types of screen locks, such as PINs, passwords, patterns, and fingerprints.
Steps to Bypass FRP Using PassFab Android Unlock
Connect device and choose "Remove Google Lock(FRP)".
Select your device brand and its running Android version.
You will then be guided to set up your device for FRP removal. Just follow the onscreen instructions.
-
Once the setup is complete, the FRP lock will be removed immediately. Wait for the process to finish until you see “Bypassed Google FRP Lock Successfully” on the screen.
Conclusion
Flashing firmware on MediaTek devices doesn’t have to be a daunting task. With tools like the SP Flash Tool, whether the latest SP Flash Tool v6 or need support for legacy devices with SP Flash Tool v5, the process is manageable when following the right steps. However, dealing with additional challenges like FRP locks requires specialized tools. This is where PassFab Android Unlock comes into play. As one of the most effective solutions for bypassing FRP locks and removing screen locks, it provides a user-friendly, reliable, and quick way to regain access to your device.
Don't let FRP locks limit your experience unlock the full potential of your MediaTek-powered device with PassFab Android Unlock. Give it a try today and enjoy a seamless solution for all your unlocking needs.
